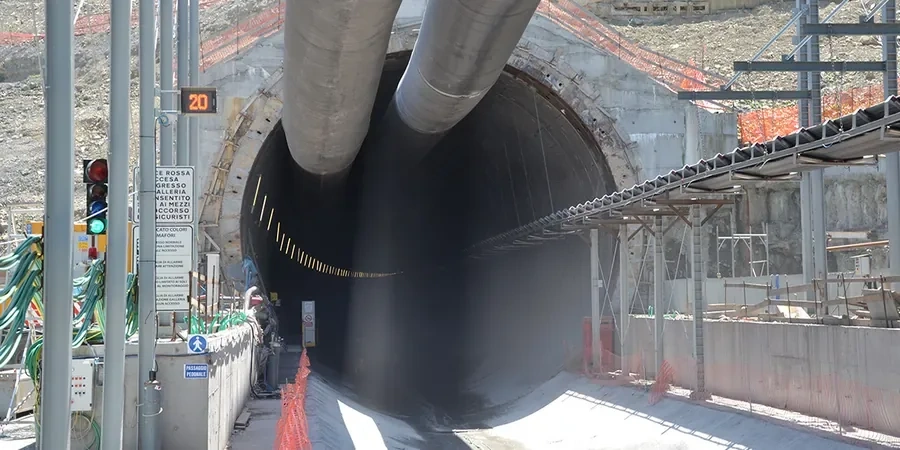

Geotechnical Analysis for Soft Ground Tunnels in Orlando, Florida

IBC Chapter 18 is clear about what happens when you tunnel through undocumented ground: delays, claims, and rework that no schedule can absorb. In Orlando, the challenge is specific — a thin sand veneer overlying the Hawthorne Group, with limestone lenses and water tables barely three feet below grade. We run ASTM D1586 borings to depth, correlate N-values with ASTM D2487 soil classification, and build a ground model that tells the contractor what to expect before the TBM advances. The data feeds directly into face pressure calculations and settlement predictions, not just a checkbox report. When the alignment runs under I-4 or near Lake Eola, we complement the investigation with CPT testing for continuous stratigraphy and pore pressure dissipation, and deep excavation analysis for shaft stability where the tunnel box meets the surface.

In Orlando's Hawthorne Formation, undrained shear strength below 500 psf at tunnel invert demands a ground model that predicts face loss before it happens.

Method and coverage

The difference between tunneling through Maitland and tunneling through Pine Hills is enormous — same county, opposite geotechnical realities. Maitland sits on medium-dense sands with SPT N-values often above 15, and the Hawthorne clay appears shallower, offering a competent arching horizon. Pine Hills, by contrast, shows thick sequences of loose silty sand with N-values in the 3-to-7 range and frequent silt seams that complicate face control. Our laboratory program includes consolidated-undrained triaxial tests on undisturbed Shelby tube samples to define effective stress parameters for the softest units along the alignment. We also run constant-head permeability tests on the sand lenses because groundwater inflow during ring erection is a real risk in Orlando — the Floridan aquifer doesn't negotiate. For mixed-face conditions where the tunnel crown hits weathered limestone, we pair the analysis with grouting feasibility studies to evaluate pre-excavation treatment zones.

Regional considerations

More than once, we have reviewed tunnel planning documents that assumed homogeneous ground conditions across Orange County — an assumption that fails the moment the TBM hits a karstified lens at the Hawthorne-Ocala contact. The real risk in Orlando is not just low strength: it is spatial variability at the scale of the tunnel face. A 20-foot change in alignment can shift the crown from competent clayey sand into a silt-filled solution feature with artesian pressure. We map the top of rock with seismic refraction surveys before the geotechnical baseline report is finalized, and we cross-check with resistivity lines where the water table obscures the reflection signal. Settlement trough prediction under Orlando's low-cohesion soils uses the volume loss method, calibrated with local case histories — generic Gaussian curves from textbook formulas won't cut it when the tunnel runs under Colonial Drive with 40,000 ADT.

Technical parameters

Parameter	Typical value
SPT N-value (typical, loose sand)	3–8 blows/ft
Undrained shear strength, Su (Hawthorne clay)	400–900 psf
Groundwater depth below grade	2–6 ft (seasonal)
Friction angle, dense sand (Maitland area)	34°–38°
Permeability, clean sand lenses	1×10⁻³ – 5×10⁻³ cm/s
Limestone UCS (weathered caprock)	200–800 psi
Atterberg limits, Hawthorne clay (PI range)	25–55%

Complementary services

Pre-Construction Tunnel Geotechnical Investigation

Deep borings along the alignment with SPT sampling, Shelby tubes in cohesive strata, piezometer installation, and laboratory strength-permeability testing. Deliverables include a Geotechnical Baseline Report and GBR update memos as ground conditions are refined.

Face Stability and Settlement Analysis

Numerical modeling of tunnel face pressure requirements using the wedge-and-silo method for soft ground, settlement trough prediction calibrated with Orlando case data, and karst feature risk mapping using geophysical cross-sections.

Standards that apply

ASTM D1586-18 Standard Test Method for Standard Penetration Test, ASTM D2487-17 Standard Practice for Classification of Soils, IBC Chapter 18 Soils and Foundations, ASTM D4767-11 Standard Test Method for Consolidated Undrained Triaxial Compression, FHWA-NHI-09-010 Technical Manual for Design and Construction of Road Tunnels
