Orlando sits on a mix of Pleistocene sands, silts, and clays overlying the massive Floridan aquifer. Groundwater here often starts just 3 to 6 feet down. That shallow water table, combined with loose sandy layers, creates a textbook setting for liquefaction risk. When we drill an SPT borehole near Lake Eola or out by the airport, we sample those saturated sands and immediately seal them to preserve in-situ moisture. We are not just running a generic equation. We correlate the N-value corrections directly to the geologic unit we see in the split spoon. In zones where the sand is clean and below the water table, even a moderate seismic event from the Bahamas Fracture Zone could trigger excess pore pressure. This is why we complement our field program with a grain-size analysis on every suspect layer. It tells us if the sand is truly liquefiable or if the fines content will provide some cohesion under cyclic loading.
A clean sand with an N1,60cs below 15 and a water table at 4 feet demands a liquefaction trigger analysis. We run the numbers, not assumptions.
Regional considerations

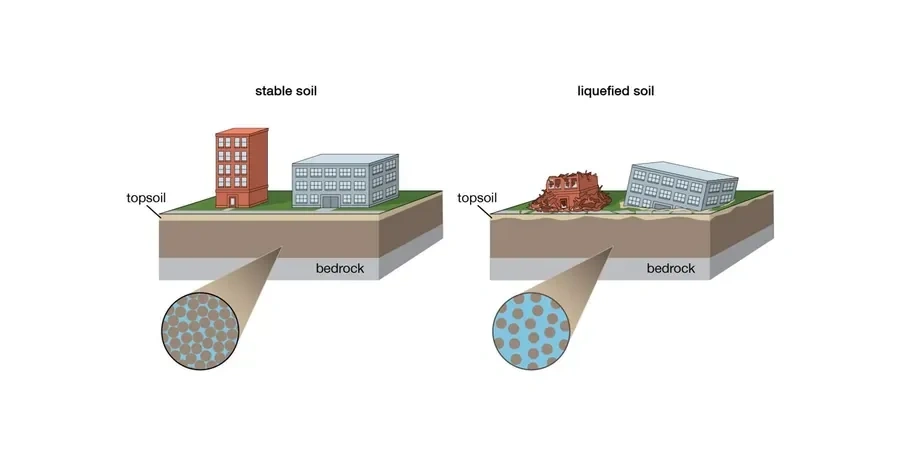

We run the SPT hammer with an automatic trip system to get a consistent energy ratio on every blow count. The split spoon comes up from the saturated sand, we open it, and we describe the sample immediately. Loose sand with a faint smell of organics tells us we are in a former lakebed deposit, common in this part of Orlando. That unit is a liquefaction candidate. If the corrected blow count is below 20, we flag it. If it is below 10, we recommend ground improvement or deep foundations. The risk is not theoretical. Loose saturated sand under cyclic loading loses its shear strength in seconds. A structure on a shallow footing can punch through or tilt. Our report quantifies post-liquefaction settlement using the Ishihara and Yoshimine method. The client gets a settlement estimate in inches for each design scenario, which allows the structural engineer to decide if the movement is tolerable or if mitigation like stone-columns is required.
Top questions
What does a soil liquefaction analysis for an Orlando building permit cost?
A full liquefaction assessment, including two SPT borings to 50 feet, lab grain-size and Atterberg tests, and the engineering report, typically runs between US$2,340 and US$4,310. The final figure depends on the depth to refusal and how many liquefiable layers we need to analyze.
How deep do you drill to check for liquefaction in Orlando?
We usually go 50 to 80 feet. In central Florida, the critical zone is within the upper 50 feet where loose Pleistocene sands sit above the Hawthorne Group. We stop at limestone refusal or when we are well into a dense, non-liquefiable stratum.
What soil types in Orlando are most prone to liquefaction?
Clean, loose, saturated sands with less than 15% fines are the main concern. We see these in old lakebed deposits and in the reworked coastal plain sediments east of the city. Silty sands can also liquefy if the plasticity index is very low.
