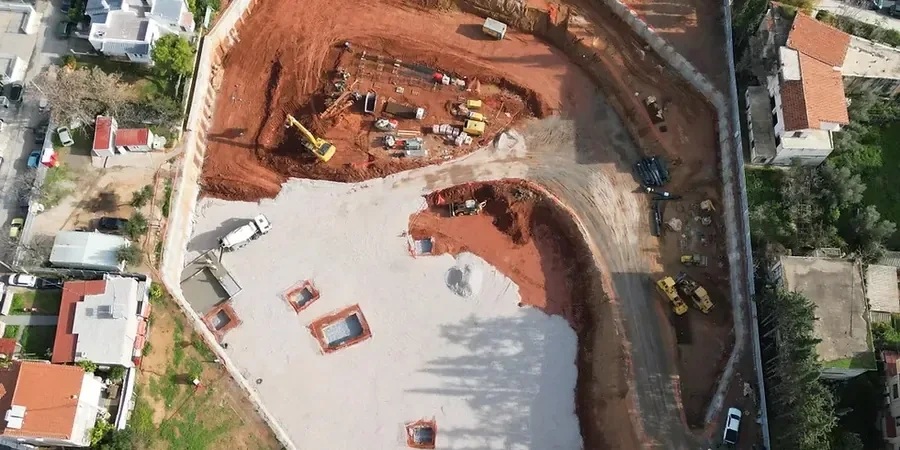

Orlando’s transformation from a frontier citrus settlement into a dense metropolitan hub brought vertical expansion that the local geology didn’t originally plan for. Beneath the sandy overburden lies the Ocala Limestone, a karstic formation riddled with solution cavities and perched water tables that complicate every excavation deeper than 15 feet. When you’re sinking a parking garage in Parramore or cutting a utility corridor near Lake Eola, the geotechnical design of deep excavations has to account for sudden loss of ground and erratic limestone pinnacles. We routinely pair the excavation support design with a seismic refraction survey to map the top of rock before a single bucket breaks ground, and integrate grouting programs to seal off solution features that could flood the cut during afternoon thunderstorms.
A deep excavation in karst isn't just a retaining problem—it's a groundwater management puzzle where the limestone dictates the pace of every lift.
Standards that apply
IBC 2021 Chapter 18 (Soils and Foundations), ASCE 7-22 Section 12.13 (Foundation Design), FHWA-NHI-05-094 (Earth Retention Systems), AASHTO LRFD Bridge Design Specifications, 9th Ed., ASTM D3966 (Lateral Load Testing of Deep Foundations), PTI DC-35.1 (Tieback Anchor Recommendations)
Top questions
How much does a deep excavation design package cost for an Orlando project?
For a typical commercial excavation in Orlando — think a two-level underground parking structure — the geotechnical design package, including the shoring plans, dewatering analysis, and construction-phase monitoring protocol, runs between US$2,290 and US$9,200. The range depends on the excavation footprint, depth, proximity to adjacent structures, and how much karst investigation is needed upfront.
What’s the biggest difference between designing an excavation in Orlando versus other Florida cities?
The karst limestone near the surface. In Miami you’re dealing with oolitic limestone at depth, but in Orlando the Ocala Limestone can appear as shallow as 15 to 20 feet with highly irregular pinnacles and solution pipes. This requires a much denser boring pattern and a design that can bridge across voids without relying on continuous passive resistance.
How long does the design phase take for a deep excavation?
From the moment we receive the geotechnical baseline report, a full excavation design — including shoring sections, anchor bond stress verification, dewatering modeling, and construction sequencing — typically takes three to five weeks. If additional site-specific karst investigation is needed, that adds another two weeks for geophysical surveys and targeted borings.
Do you handle the construction monitoring after the design is done?
Yes, we provide a comprehensive instrumentation and monitoring plan that stays active through the entire cut and backfill sequence. Inclinometers, optical survey points on the wall, and piezometers are read on a schedule tied to the excavation lifts, and we review the data within 24 hours to compare actual wall deflections against the predicted envelope. If movement approaches 80% of the design threshold, we issue a contingency directive immediately.
