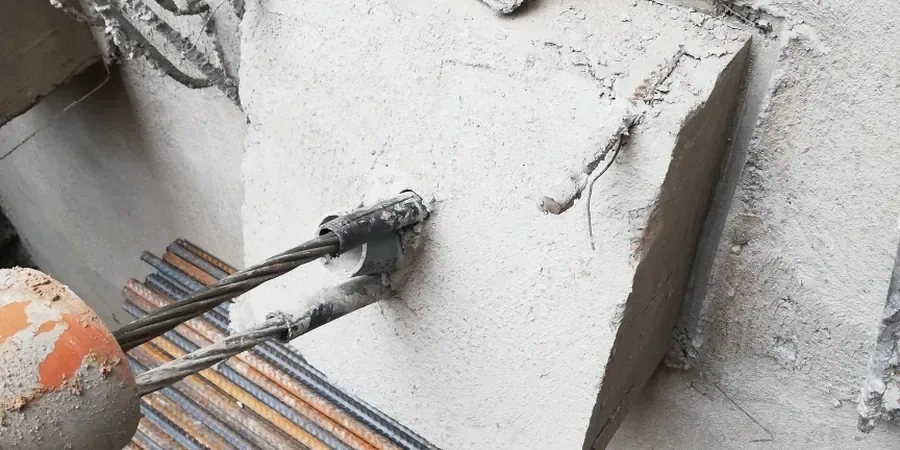

Orlando’s growth from a quiet citrus town into a global destination put immense pressure on its subsurface. The city sits on a limestone plateau dotted with sinkholes, and the water table often hovers just a few feet down. Every new hotel tower along International Drive or mid-rise near Lake Eola has to contend with weak sandy layers over weathered rock. In our experience, anchor design here isn’t a one-size-fits-all calculation. A passive grouted bar might work perfectly in the dense Hawthorn Group clays up north, while an active strand anchor becomes essential when you’re holding back a deep excavation in loose sand just a block from a wetland. The local geology demands a flexible approach, and our engineers have mapped hundreds of these transitions across Orange County, combining site-specific data with the latest CPT soundings to fine-tune bond lengths.
In Orlando’s karst terrain, the difference between a passive rock bolt and an active tieback often comes down to a single solution channel you couldn’t see on the boring log.
Method and coverage
We recently reviewed a project near Lake Nona where a hospital expansion required a 22-foot-deep cut right next to an existing operating wing. The general contractor was worried about vibrations, so we specified active hollow-bar anchors with a low-pressure grouting sequence to avoid disturbing the sensitive medical equipment. That job highlighted three critical anchor design factors we deal with regularly. First, the karstic limestone in Orlando is riddled with solution channels—you can lose grout fast and never know it without continuous monitoring. Second, the seasonal high water table means corrosion protection must go well beyond the ASTM A775 minimum; we double-wrapped the tendon sheathing and used factory-applied epoxy on the bar. Third, the tension zone behind the wall face often extends deeper than a textbook wedge analysis predicts, especially where the sandy overburden transitions abruptly to rock. We back every design with pull-out testing and load-cell data to confirm the bonded length performs as modeled, adjusting the lock-off load when necessary.
Regional considerations
A detail we’ve learned the hard way in Orlando is that anchor creep in saturated limestone can go undetected for months, quietly unloading the wall until the first heavy rain triggers a movement. The combination of dissolved cavities, fluctuating pore pressure, and high cyclic loading from afternoon thunderstorms creates a fatigue environment that isn’t covered by a standard safety factor. We’ve seen cases where a passive anchor installed in a seemingly competent layer of Ocala Limestone lost 40 percent of its capacity within two years because the grout column had bridged across a small void that later collapsed. That’s why our protocol includes repeat lift-off tests at three, six, and twelve months on any permanent anchor in karst zones. The small cost of re-stressing a few anchors is nothing compared to a retaining wall failure along a busy arterial like Colonial Drive.
Top questions
What’s the difference between an active and a passive ground anchor?
An active anchor is tensioned to a specified lock-off load right after grouting cures, applying a pre-compressive force to the structure. A passive anchor isn’t stressed until the ground or wall starts to move. In Orlando we typically use active tiebacks for excavation support and passive rock bolts for slope stabilization, though the choice depends on allowable deflections and the karst risk at the site.
How much does an anchor design package cost in Orlando?
For a typical retaining wall or shoring project in the Orlando area, a complete design package including geotechnical investigation, anchor sizing, and signed-and-sealed drawings ranges from US$1,120 to US$3,640, depending on the number of anchor rows and the complexity of the karst evaluation required.
How do you handle grout loss in karst limestone?
We monitor grout take continuously during installation. If the take exceeds 2.5 times the theoretical volume, we switch to a low-mobility grout or use a packer system to isolate the loss zone. In some areas of Orlando with known solution features, we pre-grout the borehole before installing the tendon to fill open voids and prevent future settlement around the bond zone.
What testing is required for permanent anchors in Florida?
Permanent anchors follow the PTI DC35.1-14 recommendations, which require a performance test on at least 5 percent of the anchors and a proof test on the remaining ones. Each anchor is loaded to 133 percent of the design load and held while measuring creep. In Orlando’s karst we also specify long-term monitoring with periodic lift-off checks because of the unpredictable behavior of fractured limestone over time.
Can you design anchors for hurricane wind uplift in Orlando?
Yes, we regularly design active anchors to resist wind uplift on large-span structures, transmission towers, and high-wall signs. The design combines ASCE 7-22 wind loads for the Orlando region with the allowable bond stress from our site investigation, ensuring the foundation can handle both the sustained tension and the cyclic loading from frequent summer storms.
