Seismic Tomography Surveys for Central Florida Sinkhole & Karst Assessment

Together, we solve the challenges of tomorrow.

DISCOVER →

Orlando’s geology is a quiet puzzle of ancient limestone, buried sinkholes, and solution channels hidden beneath the sandy surface. When you place a heavy structure over this kind of karst terrain, the difference between a stable foundation and a costly repair often comes down to knowing the bedrock profile with precision. Seismic tomography — both refraction and reflection — gives our team a non-invasive way to image the subsurface before a single cubic yard of concrete is poured. In a region where the Floridan Aquifer dissolves the carbonate rock from below, relying on scattered borings alone leaves dangerous blind spots. We combine surface-based geophysical lines with targeted geotechnical borings to calibrate velocity models against physical samples, then extend that knowledge across the entire site so you can design with confidence rather than guesswork.

A seismic velocity inversion in a karst setting is not just a number — it is often the first warning that a stable-looking drill log is masking a migration pathway to the surface.

Method and coverage

Orlando’s development boom after the 1971 opening of Walt Disney World transformed a quiet citrus belt into a sprawling metro of over 300,000 residents, and the footprint of that growth now pushes into areas where the Hawthorn Group sediments thin out and the underlying Ocala Limestone is aggressively karstified. The unpredictable depth to competent rock — sometimes 20 feet, sometimes 120 feet within a single block — makes seismic tomography indispensable for site characterization. Our field crew typically deploys 24- or 48-channel seismographs with a sledgehammer or weight-drop source for refraction surveys reaching 30 to 100 feet of penetration, and we switch to a larger accelerated weight drop when reflection profiling is needed for deeper targets. We process the data through iterative ray-tracing and tomographic inversion to build a 2D velocity cross-section that highlights velocity reversals — the classic signature of a void or highly fractured zone. For critical infrastructure near the Wekiva basin, we often pair velocity models with resistivity imaging to discriminate between air-filled and clay-filled cavities, and we use MASW profiles to extract Vs30 values directly for ASCE 7 site classification without relying on proxy correlations from N-values.
Seismic Tomography Surveys for Central Florida Sinkhole & Karst Assessment

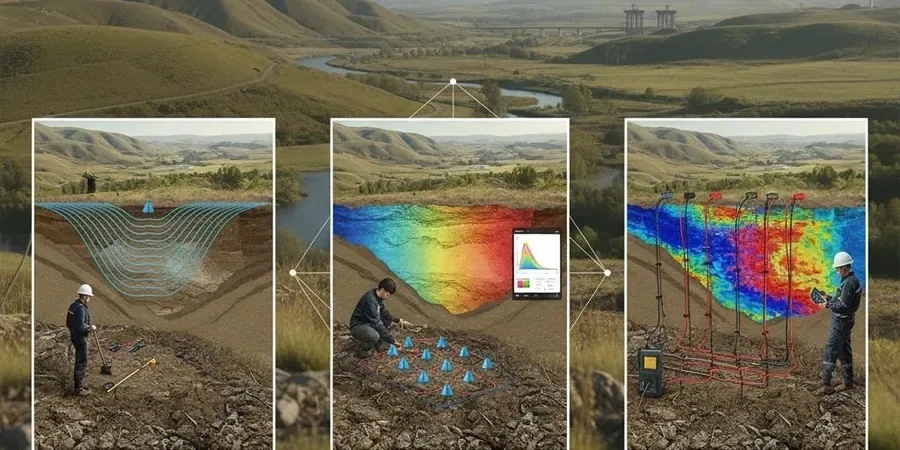

Technical reference image — Orlando

Regional considerations

ASCE 7 Section 20 and Chapter 18 of the IBC make clear that site classification requires reliable shear-wave velocity data — but in Orlando, the real risk is not just a code violation; it is the undetected raveling zone above a paleosinkhole that slowly migrates upward. We have seen sites where standard SPT refusal at 15 feet suggested competent rock, yet a parallel seismic tomography line revealed a 40-foot-deep vertical chimney of loose, water-saturated sand completely missed by the drill rig. The ordinance landscape in Orange County and the City of Orlando increasingly requires geophysical substantiation in sinkhole-prone areas, especially for essential facilities and subdivisions. When tomography is skipped, the owner carries an invisible liability that can surface years later as differential settlement, cracked slabs, or worse — a catastrophic cover collapse during the next heavy rain cycle.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.sbs

Technical parameters

ParameterTypical value
MethodSeismic refraction and reflection tomography (2D/3D)
Applicable ASTM standardsASTM D4428/D4428M-14, D5777-18 (MASW), D7400-17
Typical penetration depth30–100 ft (refraction), up to 300 ft (reflection with AWD)
Channel count24 or 48 channel seismograph, single or multiple spreads
Energy sourceSledgehammer, weight drop, or accelerated weight drop per target depth
DeliverableTomographic velocity cross-sections, bedrock contour maps, Vs30 profiles
Site class outputASCE 7-22 Site Class A through E per Vs30 and depth to rock
Karst interpretationVelocity reversal zones flagged for potential voids or raveling conditions

Complementary services

01

Seismic Refraction Tomography

2D velocity profiling for bedrock depth mapping, rippability assessment, and identifying low-velocity sinkhole zones within the first 80–100 feet. Ideal for commercial pads and subdivision master planning across Orange County.

02

Seismic Reflection Profiling

Higher-resolution imaging for deeper targets where the water table and soft limestone create complex reflection coefficients. We apply this for deep foundation design and bridge pier investigations where the Ocala Limestone surface is highly irregular.

03

Vs30 and Site Classification Surveys

Multichannel surface wave data processed through MASW to deliver shear-wave velocity profiles and ASCE 7-22 Site Class determination. Submitted directly with the geotechnical report for IBC compliance.

04

Karst Void Detection Surveys

Integrated geophysical reconnaissance combining seismic tomography with electrical resistivity to distinguish air-filled voids from clay-plugged sinkholes. Used extensively in the Wekiva Study Area and eastern Orange County where paleosinkhole density is high.

Standards that apply

ASTM D4428/D4428M-14 (Standard Test Methods for Crosshole Seismic Testing), ASTM D5777-18 (Standard Guide for Using the Seismic Refraction Method for Subsurface Investigation), ASCE 7-22 Section 20 (Site Classification Procedure for Seismic Design), IBC Chapter 18 (Soils and Foundations — Site Investigation Requirements), FDOT Soils and Foundations Handbook (geophysical investigation in karst terrain)

Top questions

How much does a seismic tomography survey cost for a typical Orlando commercial lot?

For a standard 1- to 2-acre commercial site in the Orlando area, a seismic refraction tomography survey with 4 to 6 lines typically falls in the range of US$3,080 to US$4,990, depending on the number of spreads, the depth of investigation required, and the need for combined refraction and reflection. Larger sites with complex karst conditions or the addition of MASW profiles for Vs30 will scale accordingly, and we provide a firm quote after reviewing the site plan and any existing boring logs.

What depth of investigation can seismic refraction achieve in Orlando's sandy soils over limestone?

In the typical profile of Central Florida — loose to medium-dense sands overlying weathered Ocala Limestone — a 24-channel spread with a 10-foot geophone spacing and a sledgehammer source reliably images the top of competent rock to depths of 60 to 80 feet. When we deploy a 48-channel system with a heavier accelerated weight drop, we can push usable refraction data past 100 feet and collect supplementary reflection data reaching several hundred feet to map deeper karst features and the water table interface.

Can seismic tomography distinguish between an air-filled void and a clay-filled sinkhole?

Seismic velocity alone cannot always make that distinction because both air and soft clay can appear as low-velocity zones. On projects where this discrimination matters — such as designing foundations directly over a suspected cavity — we pair the seismic tomography with an electrical resistivity survey on the same alignment. Air-filled voids show high resistivity, while clay-filled zones are conductive, and the combined interpretation gives our engineering team a much clearer diagnostic.
