Orlando's transformation from a frontier settlement around Fort Gatlin into a sprawling metropolitan hub of over 300,000 residents has placed immense pressure on its subsurface. The city sits on a geological mosaic of Pleistocene sands, silts, and the remnants of ancient dune systems, underlain by the porous limestone of the Floridan Aquifer. When high-rise projects push into areas like Lake Nona or the densifying urban core, the soil's bearing capacity can't be guessed at—it must be measured under precise confinement. That's where the triaxial test becomes indispensable. By recreating the in-situ stress state on an undisturbed sample, we obtain the drained and undrained shear parameters that static formulas can't provide. For Orlando engineers, this data feeds directly into bearing capacity, slope stability, and settlement analyses, often complementing a CPT investigation that maps the stratigraphy before sampling. The result is a foundation design tailored to the city's unique, water-sensitive geology rather than generic textbook assumptions.
A triaxial test doesn't just give you a number; it draws the stress path that reveals how Orlando's sandy soils will actually fail under your foundation.
Method and coverage
Orlando's average elevation hovers around 82 feet above sea level, a flat topography that masks significant subsurface variability. In our experience with Central Florida projects, we often encounter loose-to-medium-dense sands interbedded with clay lenses near the Hawthorn Group formation. A properly executed triaxial test captures this heterogeneity—something a simple blow count cannot do. The consolidated-undrained (CU) protocol with pore pressure measurement reveals how these soils behave when loaded rapidly, as during hurricane wind events or seismic tremors from distant plate boundaries.
We run both multi-stage and single-specimen programs, following ASTM D4767-11 for saturated cohesive soils and ASTM D2850-15 for unconsolidated-undrained conditions in rapid construction scenarios. Effective stress parameters (c' and φ') extracted from the test are critical for modeling long-term stability. For projects where karst cavities are a concern, integrating these results with a

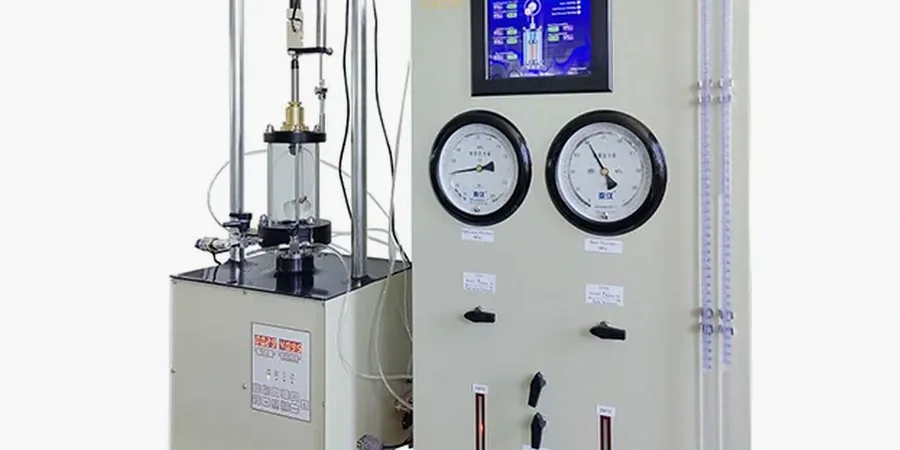

grouting program helps mitigate irregular settlement before structural loads are applied. The triaxial cell in our laboratory is equipped with precision transducers that log deviator stress, axial strain, and pore pressure continuously, generating the stress paths that define failure envelopes for Orlando's specific soil units.
Regional considerations
The Florida Building Code, incorporating ASCE 7-22, mandates site-specific geotechnical investigations for structures in Seismic Design Category B or higher, but the real risk in Orlando isn't seismic shaking—it's water. The city's shallow water table, often within five feet of the surface, creates buoyancy and seepage forces that reduce effective stress. Without triaxial testing, an engineer might overestimate the drained friction angle of a saturated fine sand, leading to foundation geometries that are unconservative. Mischaracterizing the undrained shear strength of a clay lens beneath a stormwater retention basin can trigger rotational slope failures during rapid drawdown. The test also quantifies pore pressure coefficients that explain how excess pressure dissipates under load, a factor that controls the rate of settlement near sensitive infrastructure like the SunRail corridor. When triaxial data is coupled with a thorough liquefaction assessment, even low-seismicity Orlando sites gain a defensible margin of safety against rare, long-period ground motions from the Caribbean or the New Madrid zone.
Top questions
What type of triaxial test is most appropriate for Orlando's sandy soils?
For the medium-dense, clean sands common across the Orlando area, a consolidated-drained (CD) test or a consolidated-undrained (CU) test with pore pressure measurement is typically recommended. The CD test provides effective friction angles that govern long-term bearing capacity, while the CU test yields both drained and undrained parameters. If your project involves rapid loading on silty or clayey layers—such as those near the Hawthorn Group formation—an unconsolidated-undrained (UU) test might also be specified to capture short-term stability during construction.
How does the high water table in Orlando affect triaxial test procedures?
The Floridan Aquifer and surficial aquifer systems maintain a water table just a few feet below grade in much of Orlando. This saturates the soil, so back-pressure saturation during triaxial testing becomes critical to achieve a Skempton B-value above 0.95. We carefully apply back pressure to fully saturate the specimen, then consolidate it to the estimated in-situ effective stress. This process mimics field conditions and ensures that pore pressure response during shear is measured accurately, which is essential for calculating effective stress parameters in submerged foundation soils.
What is the typical cost of a triaxial test program in Orlando?
A standard triaxial testing program—including a set of three specimens for a single formation—generally ranges from US$1,840 to US$3,050, depending on whether you need CU, UU, or CD protocols and the confining stress levels required. Multi-stage tests or programs requiring custom stress paths and cyclic loading for pavement design may fall at the higher end of that range. The final fee reflects the number of specimens, the complexity of saturation, and the reporting detail needed for regulatory review.
How do I sample soils properly for triaxial testing in Central Florida?
Undisturbed sampling is critical. For cohesive soils, a thin-walled Shelby tube pushed with a hydraulic system is preferred, taking care to avoid compression from the high moisture content typical of Orlando soils. For sands below the water table, we often recommend freezing techniques or fixed-piston samplers to minimize disturbance. The samples should be immediately sealed with wax or plastic caps, transported vertically, and kept at field moisture until extrusion in the laboratory. Our team can coordinate sampling protocols with your drilling contractor to preserve the in-situ structure needed for reliable triaxial results.
